Processing levels#

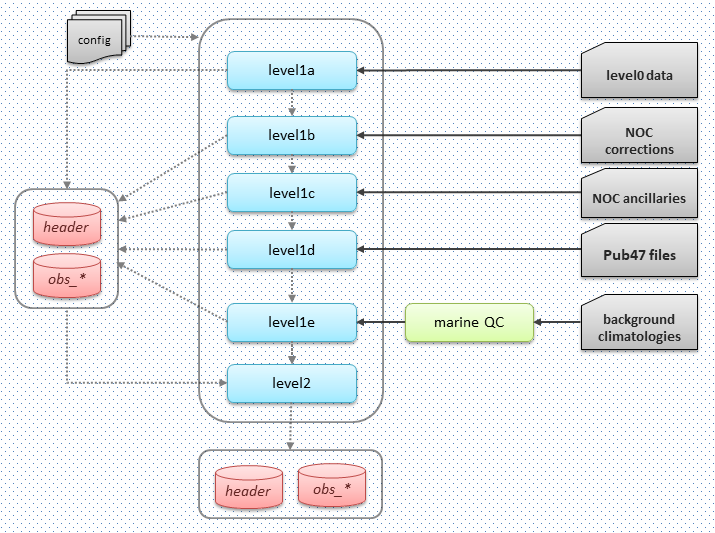

As shown in the diagram below, the Observations Suite is a set of chained processes in which the source dataset transitions through the following levels:

alternate text — Observations Suite processing levels#

level1a: is the first mapping of the dataset to the CDM. Prior to mapping, the input data files are validated against the schema / data model and code tables defining the input. Reports failing this validation are discarded. For ICOADS, this includes also the rescue of any additional information from the supplemental attachment that has been identified as adding value. At this level the data are partitioned by date (monthly files), source and card deck information and observed parameter. For each month a set of files is created containing the header and observation tables (header and observations-[at|sst|dpt|wbt|slp|ws|wd]).
level1b: is the data improved with corrections and/or additional information resulting from the linkage and duplicate identification process. Reassignment of reports to different monthly files can result from this process after datetime corrections. Therefore, NOC corrections are used. If no NOC corrections are available, Optionally, a duplicate check can be applied on the data.
level1c: is the data with metadata (currently primary station identification and datetime) validation performed and applied where available. Therefore, NOC ancillaries are used.
level1d: data is enriched with external meta-data where available. For ship data the additional meta data source is WMO Publication 47 metadata (Pub47 files).
level1e: quality control flags are added at this level, resulting from the position, parameter and tracking quality control processes.
level2: data ready to ingest in the database. Data in level1e is inspected as data filtering might apply and part of the initial data set might be rejected to be inserted in the CDS database.
